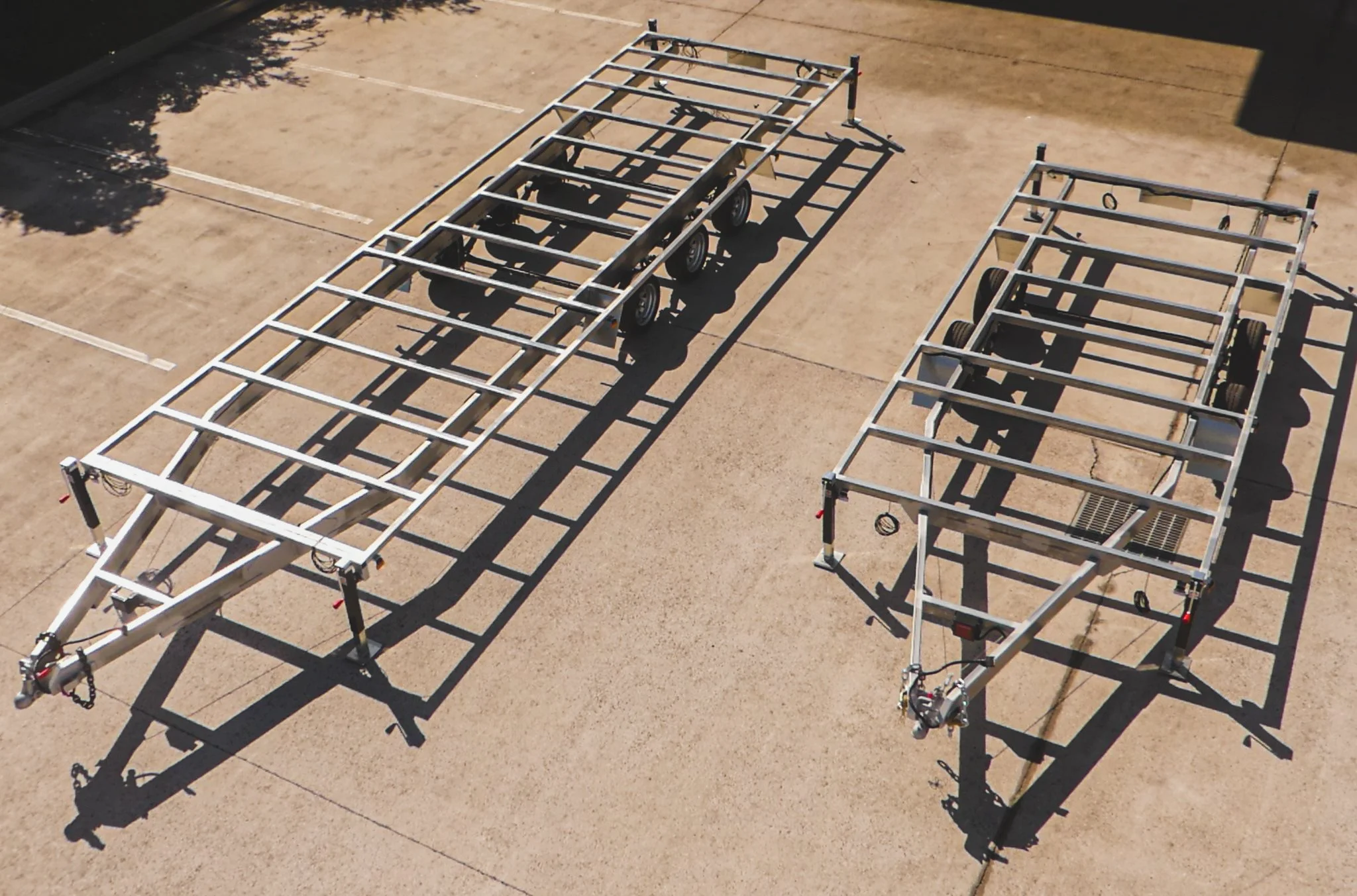

Dual and
Tri-axle Trailers
DUAL-AXLE (3.2 TONNE GVM)
AND TRI-AXLE (4.5 TONNE GVM) TRAILERS CONSTRUCTED FROM DURAGAL AVAILABLE IN TWO HEIGHT OPTIONS
→ Suitable for flushing, incinerating and self contained composting toilets.
→ Can be used with through floor composting toilets with underfloor storage tanks in certain circumstances if toilet location is planned accordingly.
→ The most common through floor systems require 500mm height clearance ie. Clivus Multrum LP and GreenLoo GL90
→ Suitable for through floor composting toilets with underfloor storage tank ie. Clivus Multrum LP and GreenLoo GL90 (both require 500mm clearance)
STANDARD TINY HOME TRAILERS INCLUSIONS
11
MUDGUARDS
2400MM WIDTH AND VARYING LENGTHS UP TO 9.0M (OVERSIZE BUILDS AVAILABLE UPTO 12M LONG AND VARYING WIDTHS IE. 2.8M, 3.0M AND UP TO 3.8M WIDE BUT THESE ARE UNABLE TO BE REGISTERED OR MADE TO COMPLY TO AUSTRALIAN DESIGN RULES AND MORE THAN LIKELY A LARGER BUILD OF THESE DIMENSIONS WOULD BE OVER 4.5T (THE WEIGHT LIMIT FOR LIGHT TRAILERS IN AUSTRALIA)
01
DURAGAL CONSTRUCTION
02
UPTO 3.2TONNE GVM ON DUAL-AXLE AND 4.5TONNE GVM ON TRI-AXLE MODELS
03
04
VIN PLATE WITH VIN NUMBER
50MM BALL HITCH WITH HANDBRAKE ON DUAL-AXLE AND 70MM BALL HITCH WITH HANDBRAKE ON TRI-AXLE
05
LOW PROFILE 195/50R13C TYRES ON 13” WHEELS WITH 900KG RATING PER WHEEL/TYRE
06
4 X HEAVY DUTY JACK STANDS RATED TO 3175KG EACH
07
2 X SAFETY CHAINS
08
ELECTRIC BRAKES TO ALL AXLES INCLUDING BREAKAWAY SYSTEM
09
7 PIN FLAT PLUG
10
LED TAIL, MARKER AND CLEARANCE LIGHTS
12
→UPGRADES

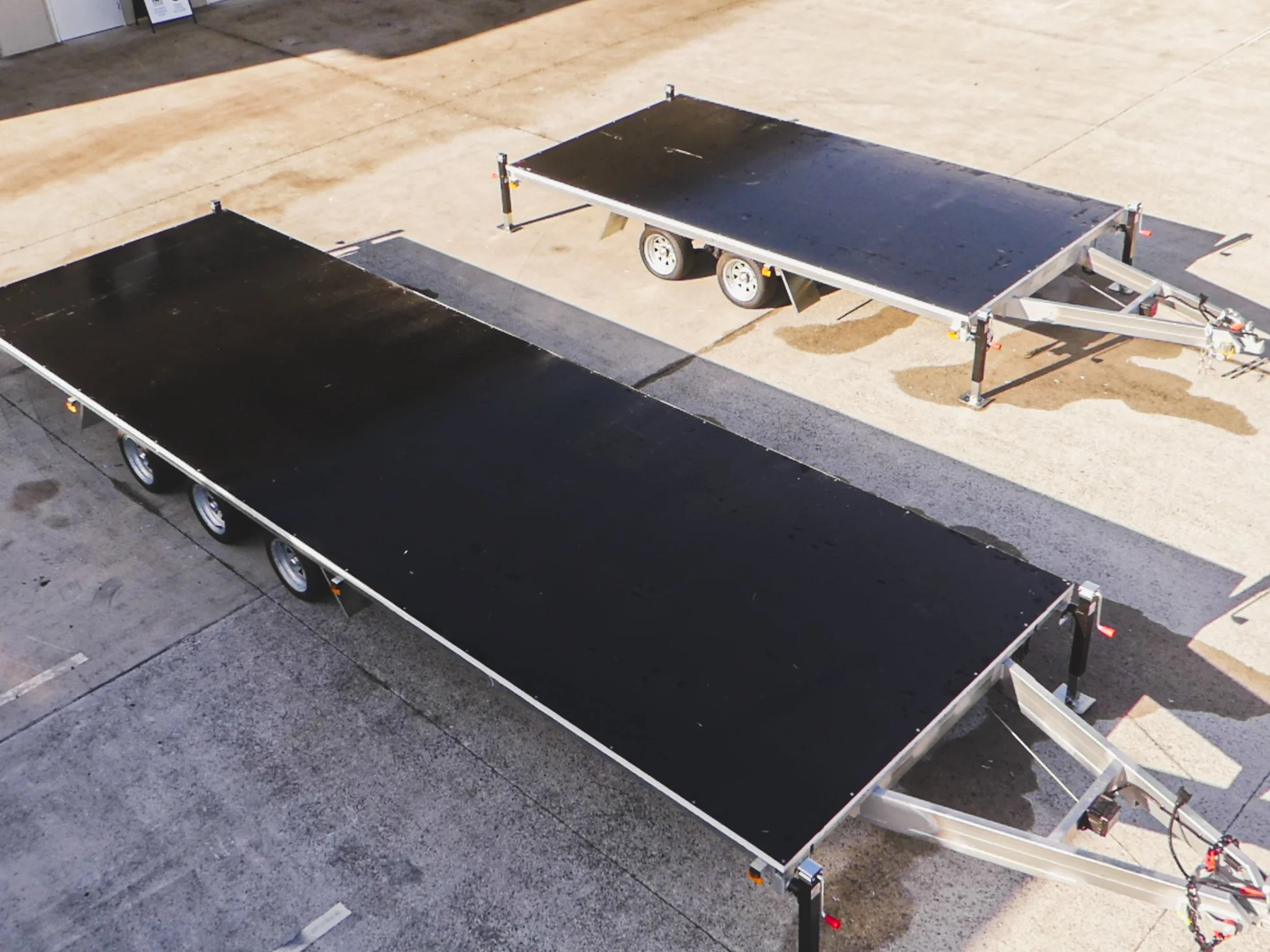

→ COMPOSITE FLOOR INCLUDING INSTALLATION
→ EXTRA JACK LEGS
→ CUSTOMISATIONS TO LAYOUT (IF POSSIBLE)
ROVER & ADR APPROVED
∙
SUNSHINE COAST
∙
ROVER & ADR APPROVED ∙ SUNSHINE COAST ∙
Check out tiny home designs at Sunshine Tiny Houses
